Boards in LKFT

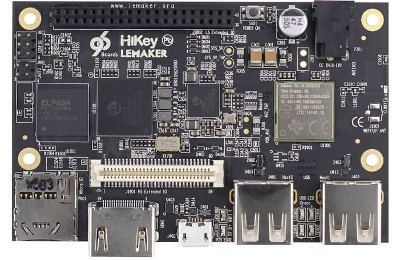

HiKey

The HiKey 620 was the first board to be certified 96Boards Consumer Edition compatible, 1GB and 2GB variants are available from LeMaker. The board is based around the HiSilicon Kirin 620 SoC and also delivers high performance 3D graphics support, Wi-Fi, and Bluetooth® wireless technology connectivity, all packed into a board the size of a credit card.

Specs

• CPU: ARM® CortexTM-A53 Octa-core 64-bit up to 1.2GHz (Arm v8 instruction set)
• RAM: 2GB LPDDR3 SDRAM @ 800MHz
• Storage: 8GB eMMC on board storage MicroSD card slot
• Ethernet Port: USB2.0 expansion
• USB: 2 x USB2.0 Host 1 x USB 2.0 OTG

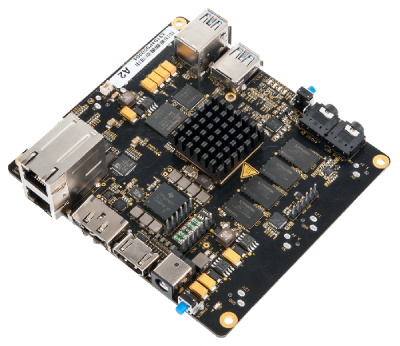

X15

BeagleBoard-X15 is the top performing, mainline Linux enabled, power-users’ dream board with a core tailored for every computing task and a highspeed interface for every connectivity need.

Specs

• CPU: TI AM5728 2×1.5-GHz ARM® Cortex-A15
• RAM: 2GB DDR3 RAM
• Storage: 4GB 8-bit eMMC on-board flash storage
• Ethernet Port: 2×Gigabit Ethernet
• USB: 3 x USB3.0 Host 1 x USB 2.0 OTG

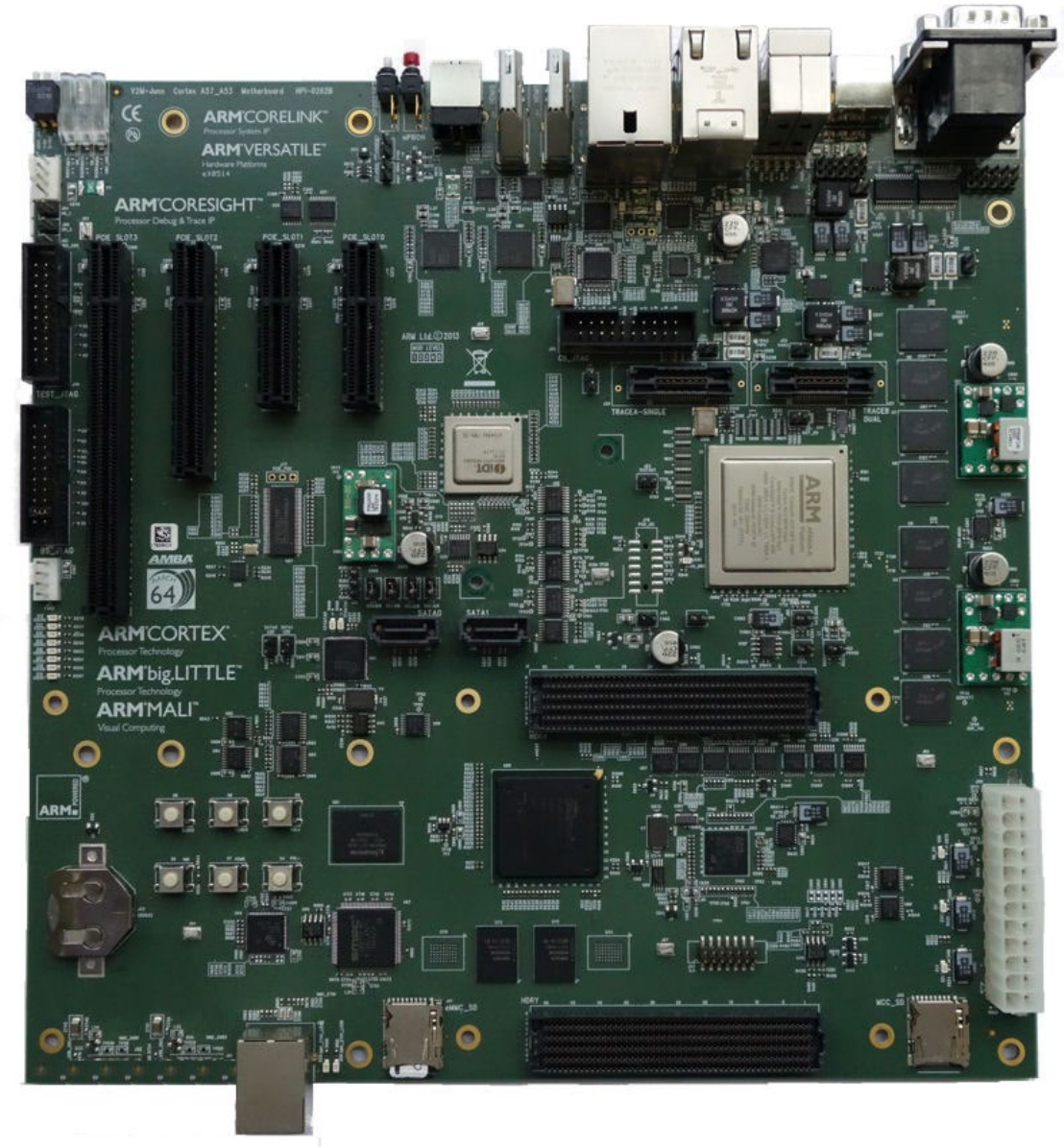

Juno r2

The Juno Arm Development Platform is a software development platform for Armv8-A which includes the Arm Versatile Express Juno development board and an Armv8-A reference software port available through Linaro.

Specs

• CPU: Cortex® A72 and A53 MPCore™ for PCIExpress development with ARMv8-A - RAM: 8GB 1600MHz DDR - Storage: SATA - Ethernet Port: 1×10/100 Ethernet - USB: 4 x USB2.0 Host

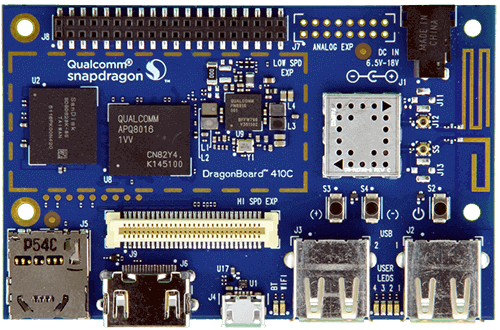

DragonBoard™ 410c

The DragonBoard 410c, a product of Arrow Electronics, is the development board based on the mid-tier Qualcomm® Snapdragon™ 410E processor. It features advanced processing power, Wi-Fi, Bluetooth® wireless technology connectivity, and GPS, all packed into a board the size of a credit card.

Specs

• CPU: ARM Cortex-A53 Quad-core up to 1.2 GHz per core
• RAM: 1GB LPDDR3 SDRAM @ 533MHz
• Storage: 8GB eMMC 4.51 on board storage and MicroSD card slot
• Ethernet Port: USB2.0 expansion
• USB: 2 x USB 2.0 Host 1 x USB 2.0 OTG

DragonBoard™ 845c

The Robotics DragonBoard™ 845c development board is based on the Qualcomm® SDA845 processor. The development board supports Linux and Robotics Operating System (ROS), while also including support for the Qualcomm® Neural Processing software development kit (SDK) for advanced on-device AI, the Qualcomm® Computer Vision Suite, the Qualcomm® Hexagon DSP SDK, and AWS RoboMaker.

Specs

• CPU: Qualcomm SDA845 embedded platform, custom 64-bit ARM v8-compliant octa-core CPU Up to 2.8 GHz,10nm LPP FinFET process technology
• RAM: 4GB LPDDR4x SDRAM @ 1866 MHz
• Storage: 64GB UFS 2.1 on-board storage and 1 x MicroSD card slot
• Ethernet Port: 1x GbE Ethernet
• USB: 1 x USB 2.0 Micro B (Debug only ), 1 x USB 2.0 Micro B (Debug only ), 2x USB 3.0 Type A (Host mode only)

WinLink E850-96Board

The WinLink E850-96Board is a 96Boards CE HW Specification V2.0 Development Board based on Samsung Exynos 850 Mobile processor, developed by WinLink. Exynos 850 is manufactured on 8nm low-power FinFET process design, high performance optimized Little Cortex-A55 Octa micro-processor for smart phone and tablet applications and also for embedded gadgets.

Specs

• CPU: Cortex-A55 Octa core up to 2.0GHz
• GPU: ARM Mali G52MP1, 2nd Generation Bifrost architecture OpenGL ES1.1/2.0/3.2 OpenCL 2.0 Full Profile and Vulkan 1.0/1.1
• RAM: 4GBytes LPDDR4 on board(MCP, KMDP6001DA-B425)
• Storage: eMMC v5.1, 64GB onboard(MCP, KMDP6001DA-B425) and 1 x MicroSD card slot
• Network: 1x10/100 Ethernet (RJ-45) socket
• Wireless: WiFi 2.4/5GHz & BT5.0 (S612 RF transceiver)
• USB: 1 x USB 2.0 Micro B (Debug only ), 2x USB 2.0 Type A (Host mode only)

Qualcomm® Robotics RB5

The Robotics Qualcomm® QRB5165 development board is based on the Qualcomm® Kryo™ 585 - Gold Core processor. The development board supports Linux and Robotics Operating System (ROS), while also including support for the Qualcomm® Neural Processing software development kit (SDK) for advanced on-device AI, the Qualcomm® Computer Vision Suite, the Qualcomm® Hexagon DSP SDK, and AWS RoboMaker.

Specs

• CPU: 4+4 Qualcomm® Kryo™ 585 - Gold Core @ 2.84 GHz (Octa-core 64-bit ARM v8 compliant applications processor. )
• RAM: 8 GB LPDDR5 2750 MHz POP
• Storage: Toshiba THGJFCT0T44BAIL (1 Tb NAND FLASH) and1 x MicroSD card slot
• Ethernet Port: 1x GbE Ethernet
• Wireless: QCA6391 2.4 GHz/5 GHz 2x2 MIMO, 802.11a/b/g/n/ac/ax
• USB: 1 x USB 2.0 Micro B (Debug only ), 1 x USB 2.0 Micro B (Debug only ), 2x USB 3.0 Type A (Host mode only)

ROCK 4

ROCK 4 is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The ROCK 4 offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.

Specs

• CPU: Rockchip RK3399 Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores
• RAM: 64bit dual channel LPDDR4@3200Mb/s 4GB
• Storage: Industrial level high performance eMMC storage, 16G/32G/64G/128G available (soldered)
• Network: 1x GbE Ethernet
• USB: 1 x USB 3.0 OTG, 2 x USB 2.0 HOST

QEMU

All tests are also run under KVM using QEMU on all supported architectures. QEMU is nice for troubleshooting without needing local hardware, as well as providing another data set to help determine when problems are board specific or architecture specific..

Arm FVP (Fixed Virtual Platforms)

Running at speeds comparable to the real hardware, Fixed Virtual Platforms (FVPs) are complete simulations of an Arm system, including processor, memory and peripherals. These are set out in a “programmer’s view”, which gives you a comprehensive model on which to build and test your software.

x86_64 Server

Tests are also run in both 64bit and 32bit mode on a typical x86_64 server for the purposes of providing a baseline for comparison.
